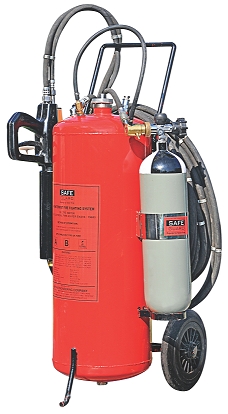

SAFEGUARD BACKPACK & HANDHELD WATER MIST

Sr. No.

Technical Particulars

1

Approval

 ISO 9001:2008, CE, ERDA

2

Weight of the filled System without Air Bottle

 21 Kg. Approx.

3

Weight of the filled Compressed Air Bottle
(2l x 300 bar Carbon Composite)

 2 Kg. Approx.

4

Weight of the Gun (Spray & Jet)

 2 Kg. Approx.

5

Extinguisher Type

 Charged Extinguisher

6

Suitable on Class of Fire

 A, B & Live Electrical

7

Functional Temperature Range

 +5^oC to 60^oC

8

Dimension of fire extinguisher (l x w x h)

 280 mm x 450 mm x 750 mm

9

Gun dimension

 550 mm x 220 mm

10

Hose length (Std. Type)

 1.3 Mtr.

11

Compressed Air Bottle

 2l x 300 bar

12

Operating Pressure

 8 to 8.5 bar

13

Range of the Jet

 10" 12 Mtr.

14

Range of the Spray

 4" 5 Mtr.

15

Consumption Rate

 0.4L" 0.5L per second

16

Functional Time

20 to 23 Sec.

17

Extinguishing Agent

8.3 L water + 700 ml AFFF 6%
